Coordination Control

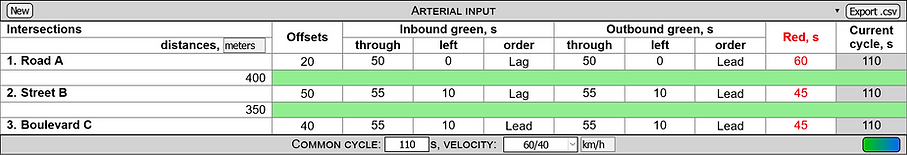

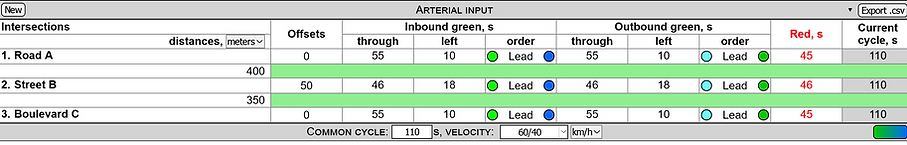

Our Coordination Control tool allows you to verify the current coordination of your arterial. The tool consists of an input table and a resulting time-space diagram. The table should be filled with the following data:

​

• Number of intersections

• Distances between intersections

• Green and red times

• Cycle lengths for all intersections

• Vehicle speed(s)

• Coordination parameters: offsets (reference point is the start of the arterial red time) and phase sequences (Lead/Lead, Lead/Lag, Lag/Lead, or Lag/Lag).

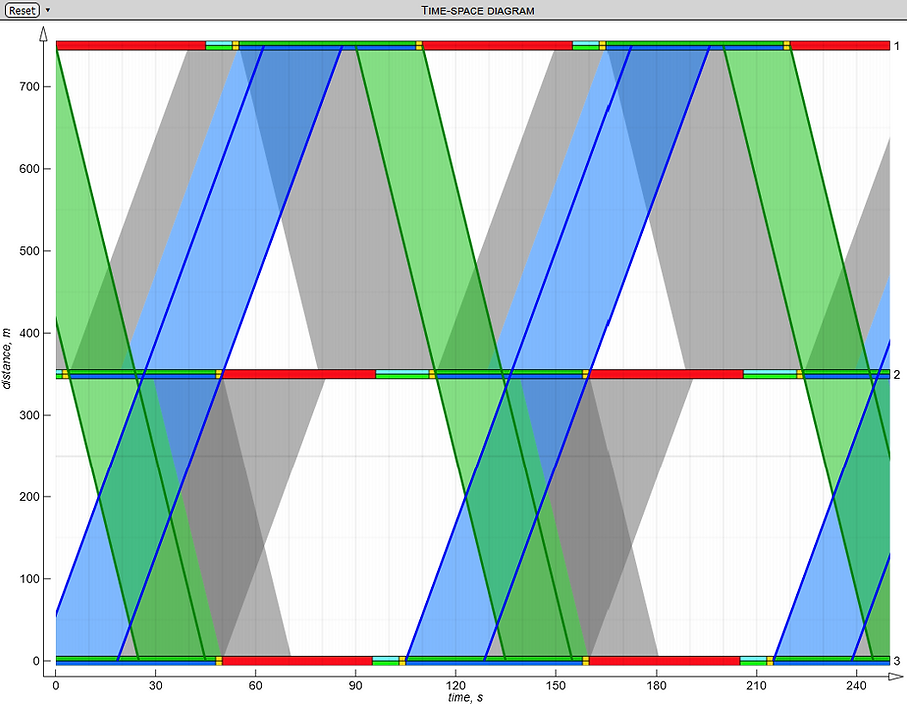

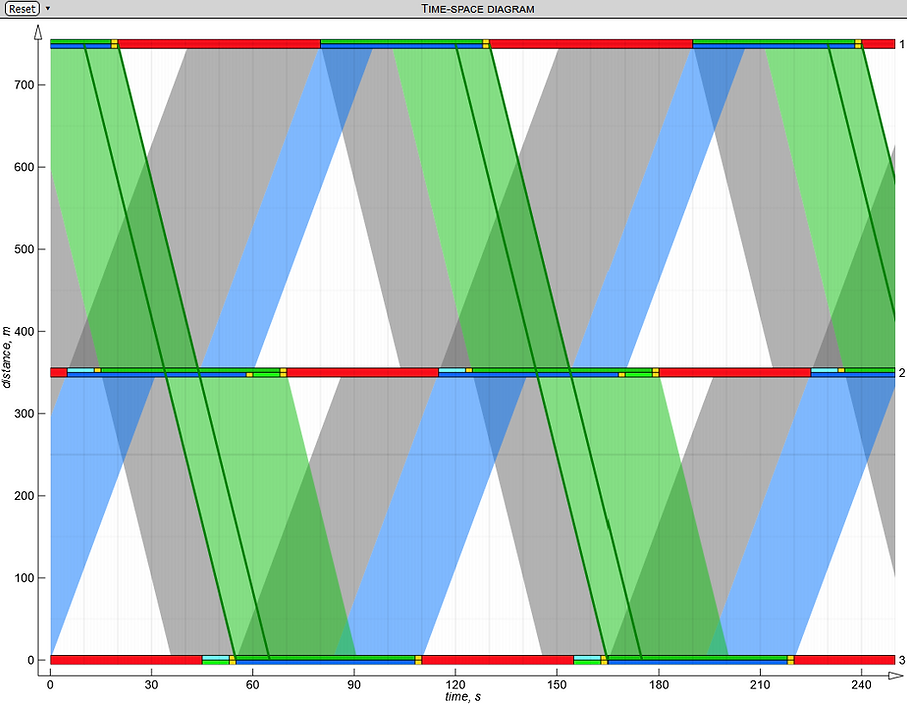

Once the table is completed, the time-space diagram will instantly appear below it. This diagram shows green wave bandwidths (if present) and all link bandwidths. The link bandwidths are indicated by transparent green and blue bands, representing the green waves for each pair of consecutive intersections.
